產品介紹

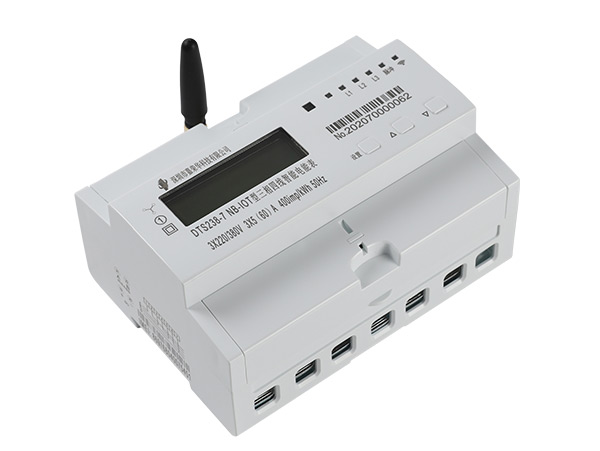

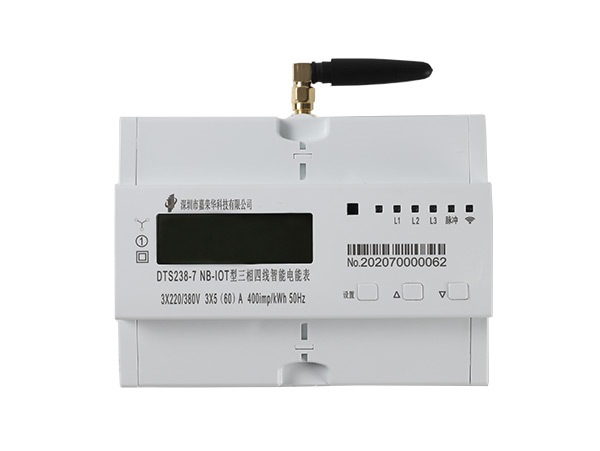

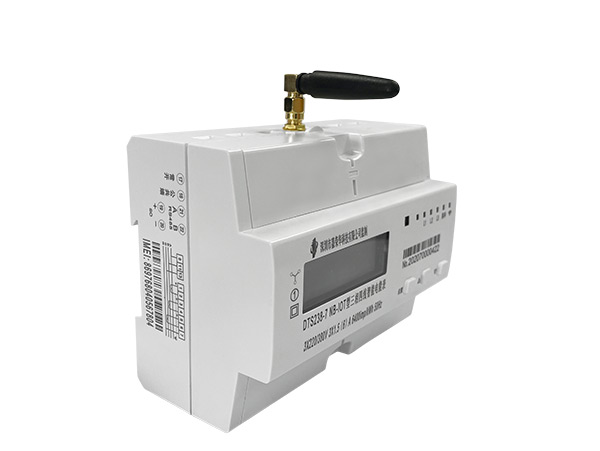

NB-IOT型三相(xiang)電(dian)(dian)子式(shi)電(dian)(dian)能表(biao)是(shi)采用先進的(de)低功耗集成(cheng)電(dian)(dian)路(lu)技術和SMT工藝設計制造的(de)新型電(dian)(dian)能表(biao)，用以(yi)測量50/60Hz交流電(dian)(dian)路(lu)中的(de)三相(xiang)有功電(dian)(dian)能。

本表(biao)可以直接準確測量總(zong)有(you)(you)功(gong)電(dian)(dian)量，實(shi)時電(dian)(dian)流(liu)(liu)、電(dian)(dian)壓、有(you)(you)功(gong)功(gong)率、功(gong)率因(yin)數、頻率，同時它(ta)具有(you)(you)RS485通(tong)訊功(gong)能，可實(shi)現遠程(cheng)(cheng)抄表(biao)和(he)遠程(cheng)(cheng)控制，其性能指標(biao)符合(he)GB/T  17215.321-2008 《1級和(he)2級靜止式交流(liu)(liu)有(you)(you)功(gong)電(dian)(dian)能表(biao)》要求。

該表(biao)(biao)具有NB-IOT實現遠程控(kong)制和查看電(dian)量(liang)信息等(deng)功(gong)能(neng)。另外該表(biao)(biao)可以特殊定制RS485通(tong)信功(gong)能(neng)，通(tong)信規約支持DL/T645-2007《多功(gong)能(neng)表(biao)(biao)通(tong)信規約》，全部性能(neng)指(zhi)標(biao)符(fu)合DL/T614《多功(gong)能(neng)電(dian)能(neng)表(biao)(biao)》的要(yao)求或MODBUS-RTU通(tong)訊規約。

主要功能特點

全(quan)電(dian)(dian)子式三相交流(liu)有功(gong)(gong)(gong)(gong)電(dian)(dian)能(neng)雙向計量功(gong)(gong)(gong)(gong)能(neng),反(fan)向計入(ru)總電(dian)(dian)量。 具有防潛動邏輯(ji)電(dian)(dian)路，防竊電(dian)(dian)功(gong)(gong)(gong)(gong)能(neng)。 測量當前(qian)電(dian)(dian)流(liu)，電(dian)(dian)壓(ya)，有功(gong)(gong)(gong)(gong)功(gong)(gong)(gong)(gong)率(lv)，無功(gong)(gong)(gong)(gong)功(gong)(gong)(gong)(gong)率(lv)，功(gong)(gong)(gong)(gong)率(lv)因數，頻率(lv)。

帶有觸(chu)控按(an)(an)鈕，方(fang)便(bian)輪顯。 具備觸(chu)控按(an)(an)鈕輪顯功(gong)(gong)能，長按(an)(an)按(an)(an)鈕5秒隨時可(ke)以去除間隔電(dian)量功(gong)(gong)能 量程寬，功(gong)(gong)耗低，體積小，重量輕，外形美觀，高可(ke)靠性。 采用(yong)35mm標準(zhun)導(dao)軌安(an)裝(zhuang) ,電(dian)流電(dian)壓接(jie)線(xian)采用(yong)下進(jin)下出方(fang)式(shi)，方(fang)便(bian)替代傳(chuan)統電(dian)表(biao) RS485通信(xin)功(gong)(gong)能(可(ke)特殊定制) 具備NB-IOT通信(xin)功(gong)(gong)能，可(ke)以實現遠程查詢和控制

工作原理

DT(S)S238-7 WIFI型三相表(biao)主要由(you)電(dian)(dian)(dian)壓(ya)電(dian)(dian)(dian)流采(cai)樣(yang)電(dian)(dian)(dian)路、專用電(dian)(dian)(dian)能(neng)(neng)(neng)計量芯片,CPU及LCD顯(xian)示等(deng)部分(fen)組(zu)成。電(dian)(dian)(dian)能(neng)(neng)(neng)表(biao)將采(cai)樣(yang)的電(dian)(dian)(dian)壓(ya)、電(dian)(dian)(dian)流信號輸入(ru)到專用電(dian)(dian)(dian)能(neng)(neng)(neng)計量芯片，輸出電(dian)(dian)(dian)能(neng)(neng)(neng)脈沖信號，并由(you)LCD顯(xian)示電(dian)(dian)(dian)能(neng)(neng)(neng)，并通過WIFI接口實現遠(yuan)距離抄錄表(biao)內電(dian)(dian)(dian)能(neng)(neng)(neng)等(deng)數據。

電能表的安裝和接線

電能表應安(an)(an)裝在室內干燥、耐(nai)火(huo)、堅(jian)固的墻(qiang)上，安(an)(an)裝高度盡(jin)量為(wei)1.8米左右。

電能表(biao)的安裝尺(chi)寸采(cai)用35mm寬(kuan)度導軌(gui)安裝

電能表的接(jie)線應按照本表所提供的接(jie)線圖進行接(jie)線，盡(jin)量用銅線或銅線接(jie)頭引入。

使用及校驗

電(dian)能表(biao)出廠均校驗合格,并加鉛封(feng)。校驗時，通(tong)電(dian)后，電(dian)能表(biao)按標定(ding)的(de)(de)脈(mo)沖(chong)常數(shu)發出電(dian)能脈(mo)沖(chong)，為確保測(ce)量精度，對(dui)于(yu)不同(tong)的(de)(de)測(ce)試(shi)(shi)點(電(dian)流在0.05Ib～4Ib/6Ib范(fan)圍內(nei))在1～16個(ge)測(ce)試(shi)(shi)采(cai)集的(de)(de)脈(mo)沖(chong)數(shu)應(ying)隨著電(dian)流的(de)(de)增(zeng)加而(er)增(zeng)加，盡量在合理范(fan)圍內(nei)選取(qu)。

RS485通訊抄表應用(yong)

本電能表(biao)(biao)能通(tong)過(guo)其RS485接口實現遠(yuan)距離抄錄表(biao)(biao)內(nei)電能等數據。編碼格(ge)式、校驗和數據傳輸方式符(fu)合DL/T645標(biao)準要求(qiu)。每只表(biao)(biao)的表(biao)(biao)地(di)(di)址與表(biao)(biao)號一(yi)致,不(bu)足12位前面(mian)補0，通(tong)訊波(bo)(bo)特(te)率為1200bps—9600bps。采用奇偶校驗方式。如果選用MODBUS-RTU協議(yi)，默認波(bo)(bo)特(te)率為9600bps,通(tong)訊地(di)(di)址1.

運輸與貯存

(1) 電(dian)能表在運輸和(he)拆(chai)封時不(bu)應受(shou)到劇烈(lie)的(de)沖擊(ji)，并根據GB/T13384-2008《機電(dian)產(chan)品(pin)包裝通用技術條件》。

(2)貯存(cun)電能表應有(you)(you)包裝的(de)條件(jian)下(xia)，保存(cun)的(de)環境溫(wen)度(du)為-25℃— +70℃，相對濕(shi)度(du)不超(chao)過85%，并在空(kong)氣內不應含有(you)(you)足以引起腐蝕的(de)氣體。

(3)電(dian)(dian)能表應放在(zai)倉庫內保存，在(zai)原(yuan)包(bao)裝的(de)條件下，放置在(zai)臺架上，疊(die)放的(de)高(gao)度(du)(du)不超過五(wu)層，拆箱后單只包(bao)裝的(de)電(dian)(dian)能表疊(die)放高(gao)度(du)(du)不超過五(wu)只，內包(bao)裝拆封的(de)電(dian)(dian)能表不宜保存。

九、保修期限

電能(neng)表(biao)自出廠(chang)日期起12個月內，如用戶遵守本(ben)說明書規(gui)定要(yao)求(qiu)，并在制造(zao)廠(chang)鉛封完(wan)整的(de)情況(kuang)下，發現電表(biao)不符合(he)技術要(yao)求(qiu)時，制造(zao)廠(chang)給(gei)于(yu)免費修理或更換。
